mdq-cyborg

hardware · 2024

technologies: ESP-WROOM, Weather API, LEDs, Electronics

    mdq-cyborg is a reimagined Mar del Plata souvenir: a DIY weather station that queries an API to obtain temperature and humidity data—akin to the classic sea lion weather figurines.

    The device is built around an ESP-WROOM board connected to three LEDs that translate the API data into humidity levels: blue (normal), violet (medium), and pink (high). Its v1 also featured a DHT22 temperature/humidity sensor, later replaced by the Open-Meteo API.

    mdq-cyborg

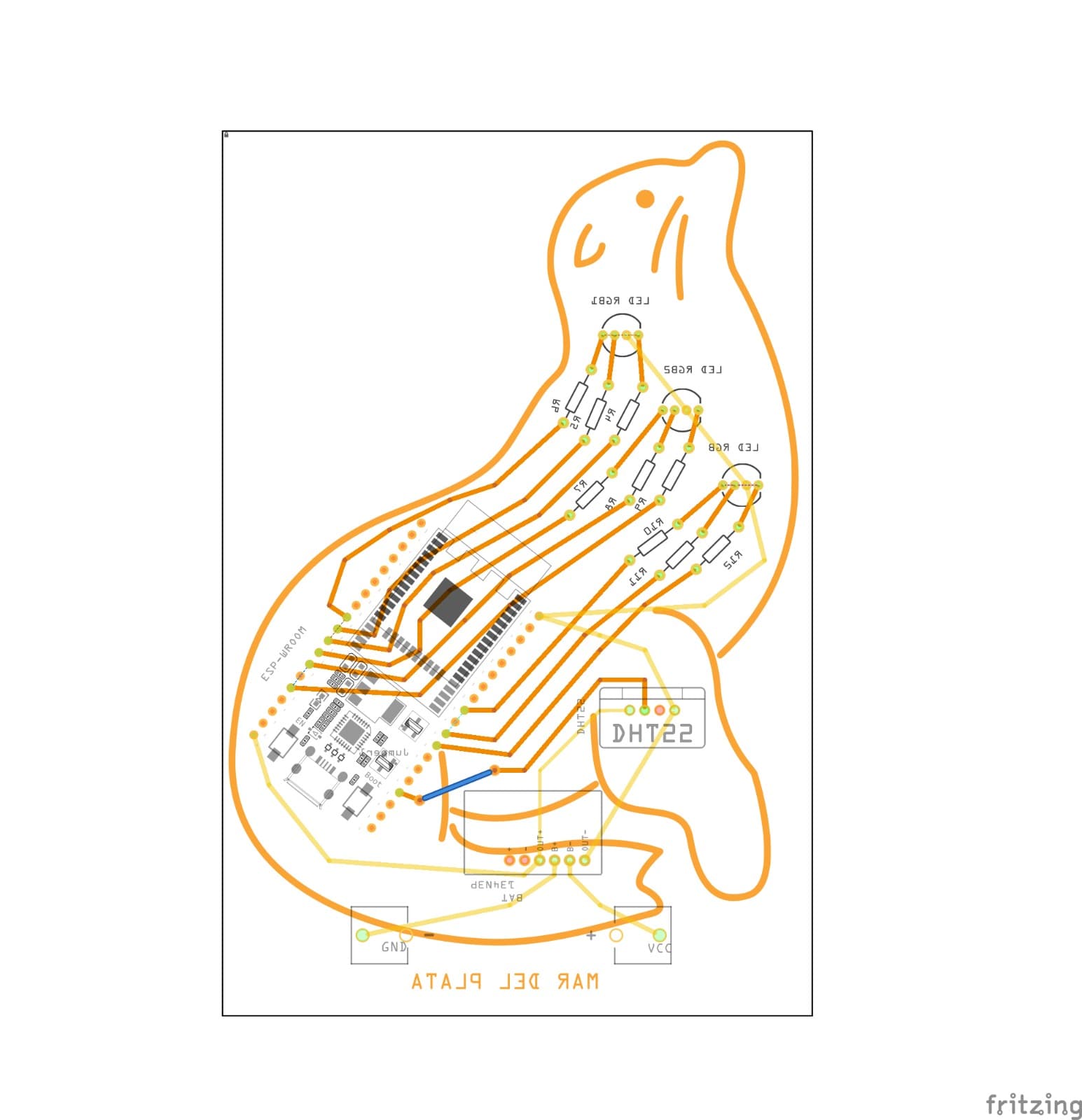

    Fritzing schematic (v1)
    Fritzing schematic (v1)
    Thermal transfer of the design
    Thermal transfer of the design

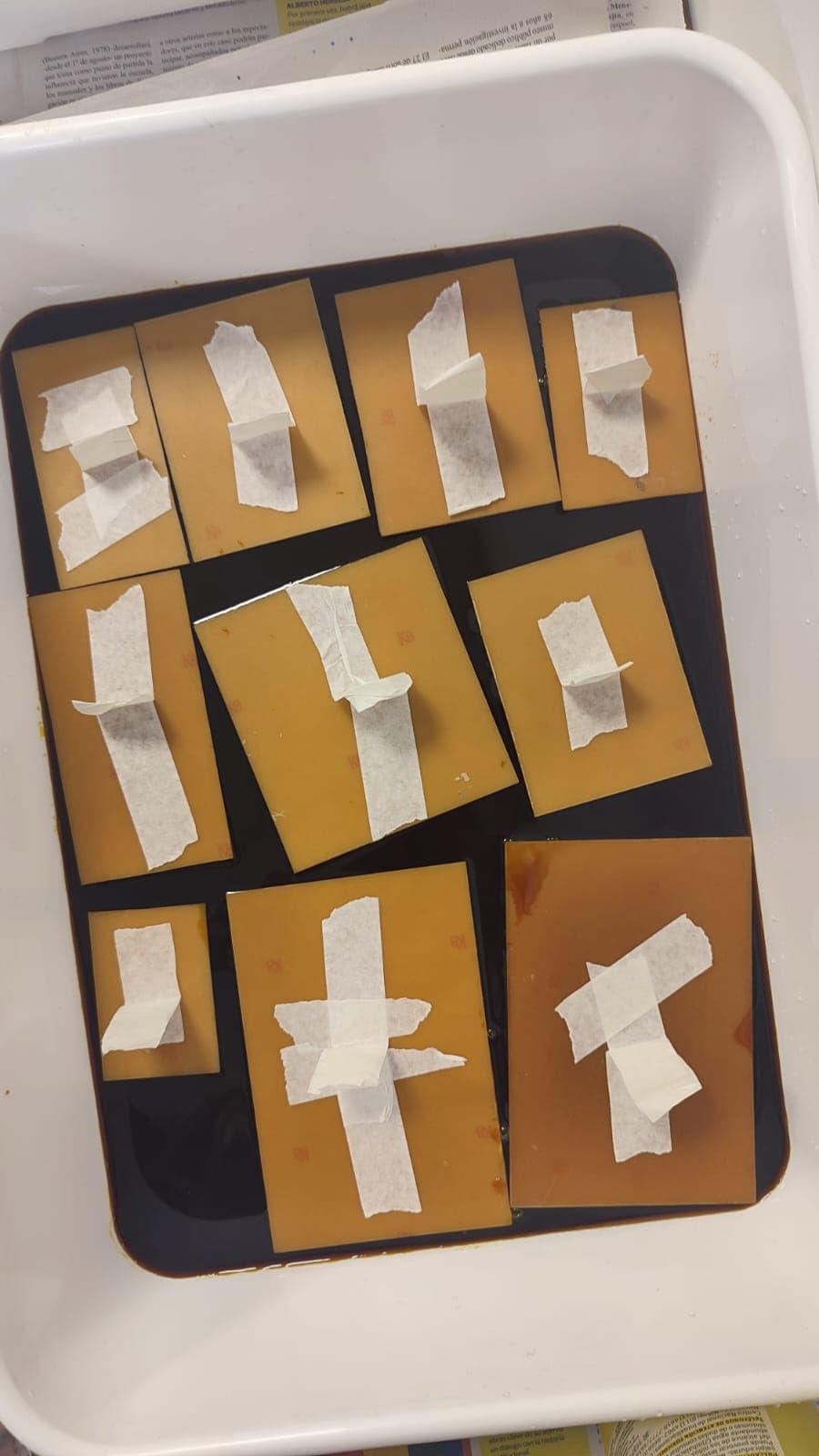

    Etching with ferric chloride
    Etching with ferric chloride
    Cleaning the board in water
    Cleaning the board in water

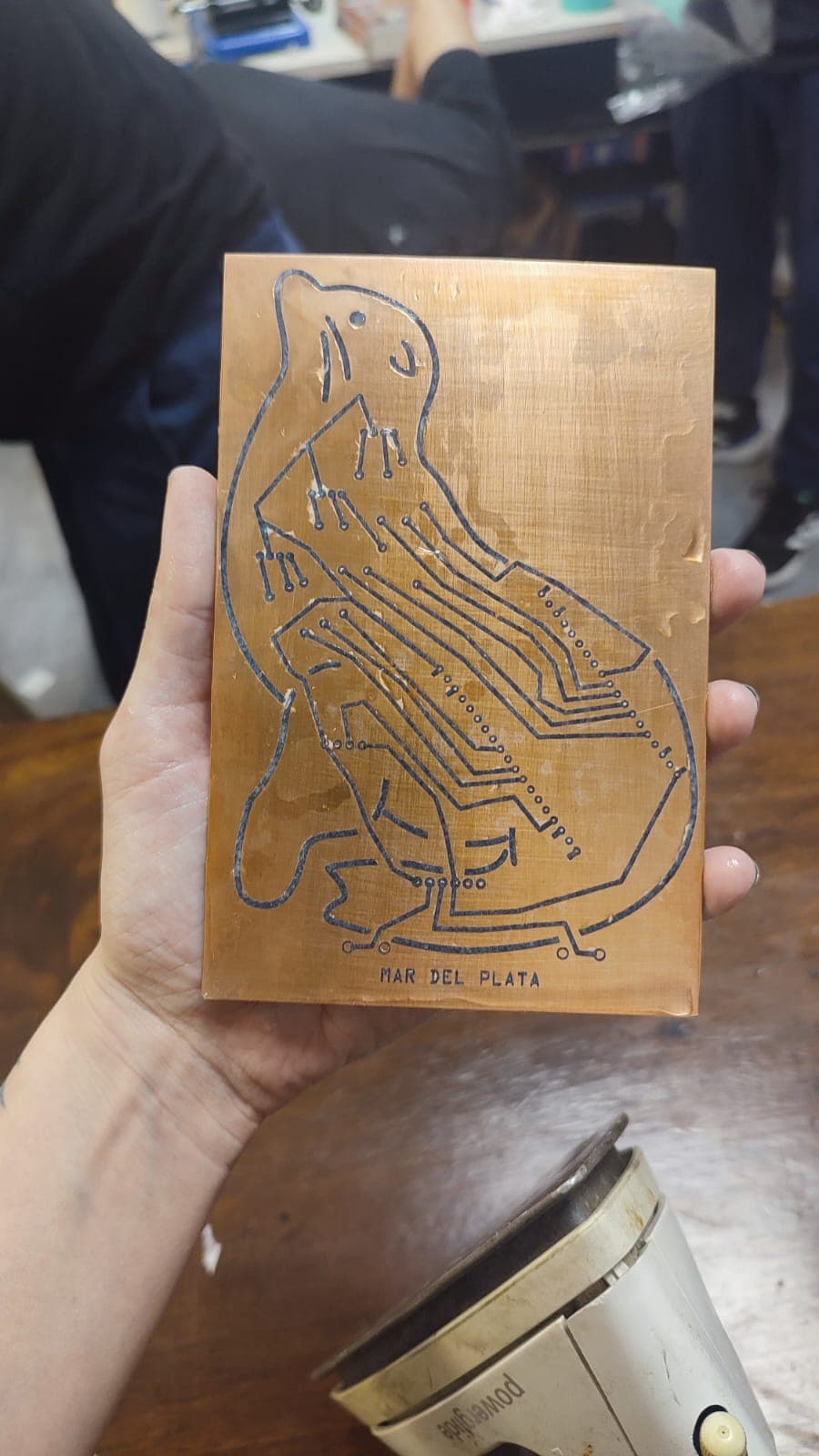

    Etching result
    Etching result

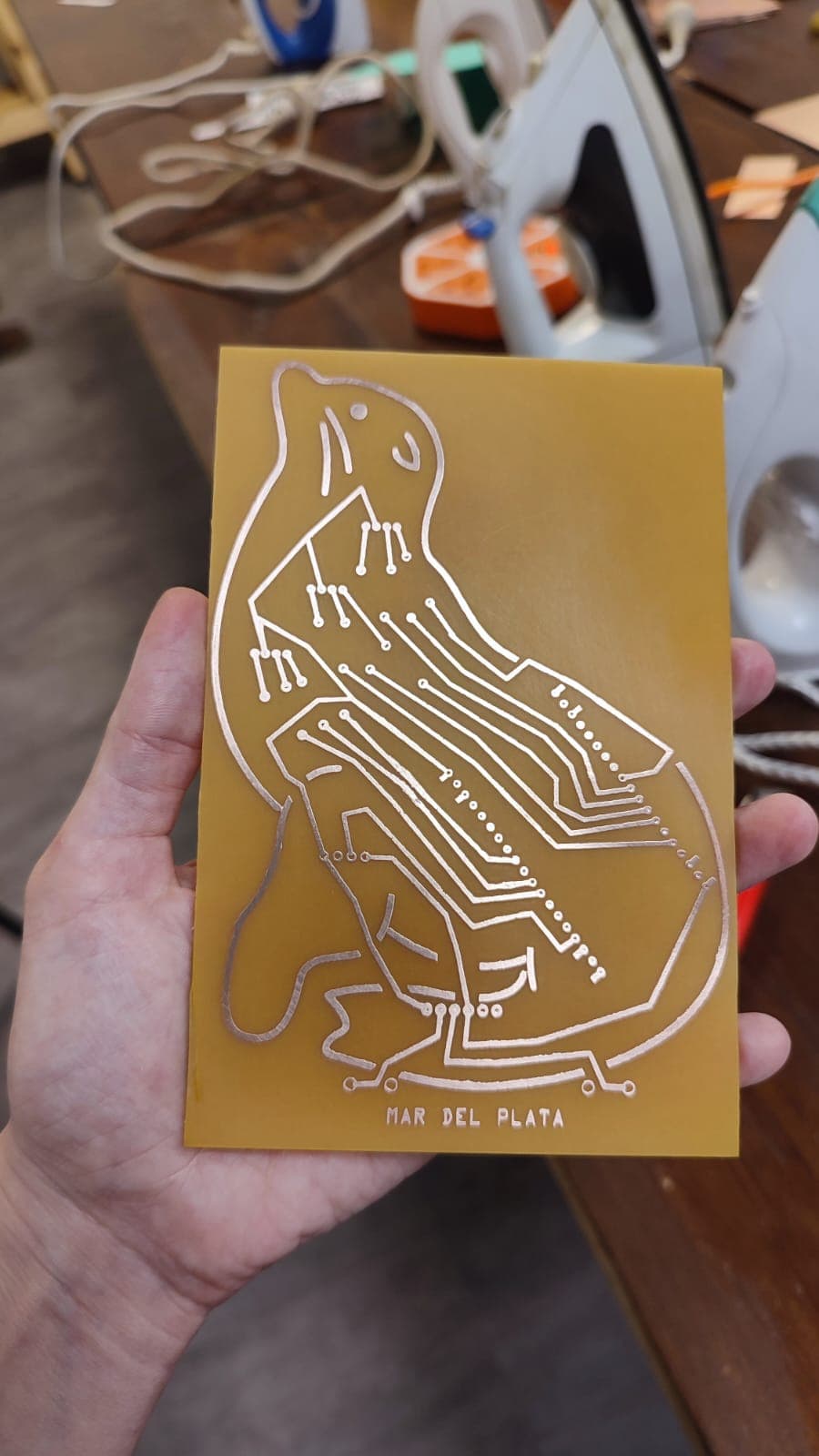

    Transferred board
    Transferred board

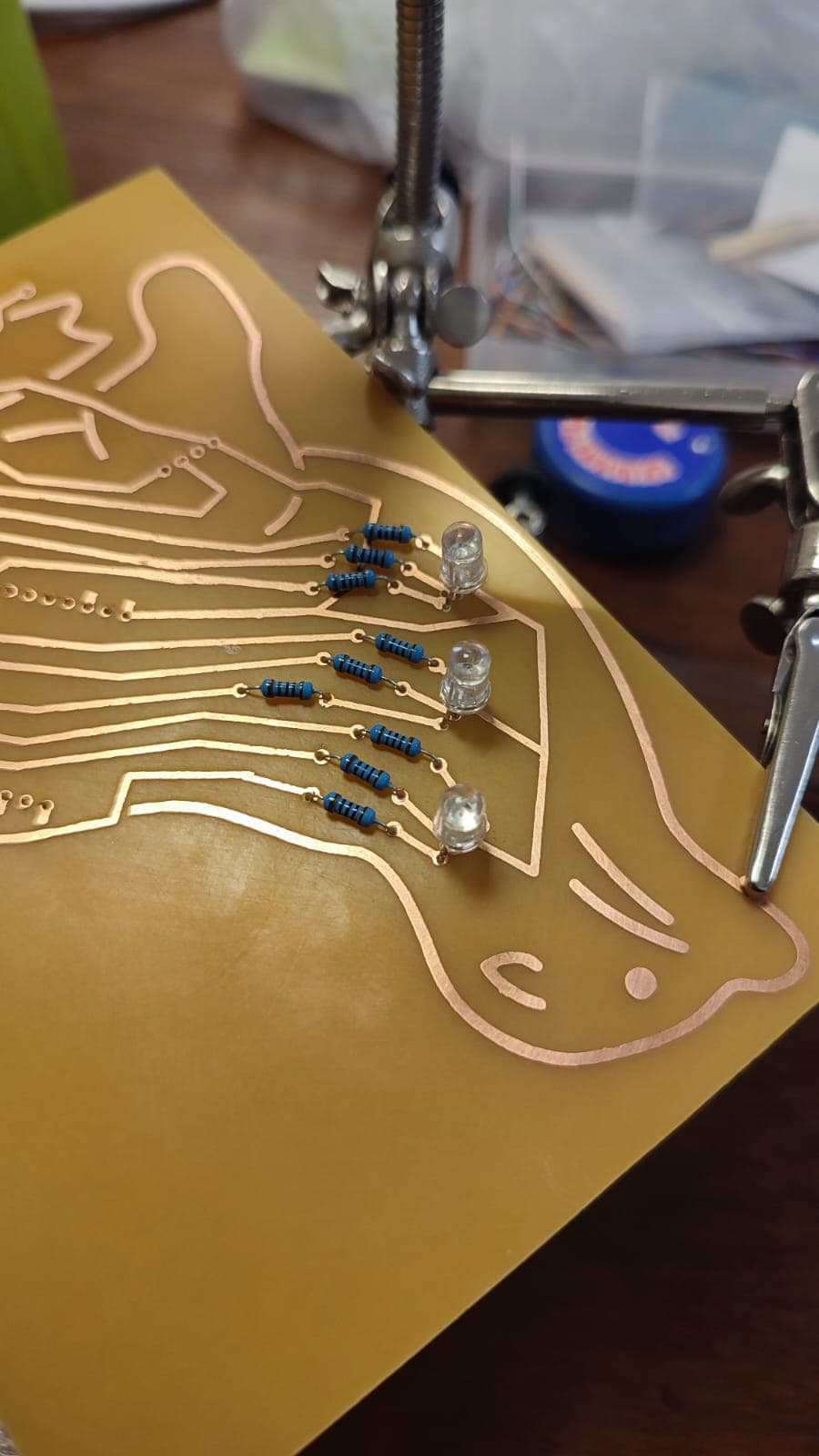

    Positioning LEDs for soldering
    Positioning LEDs for soldering

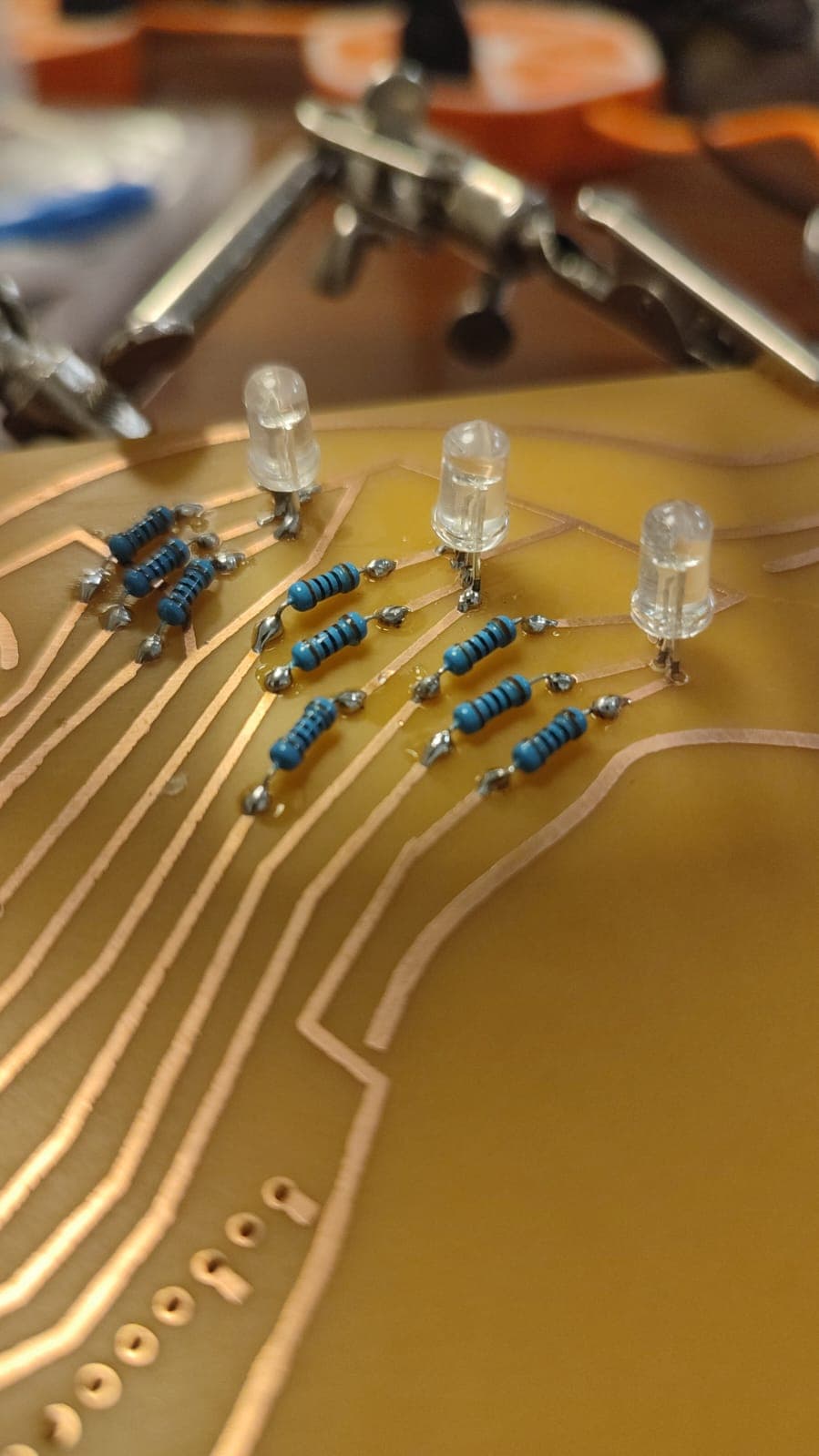

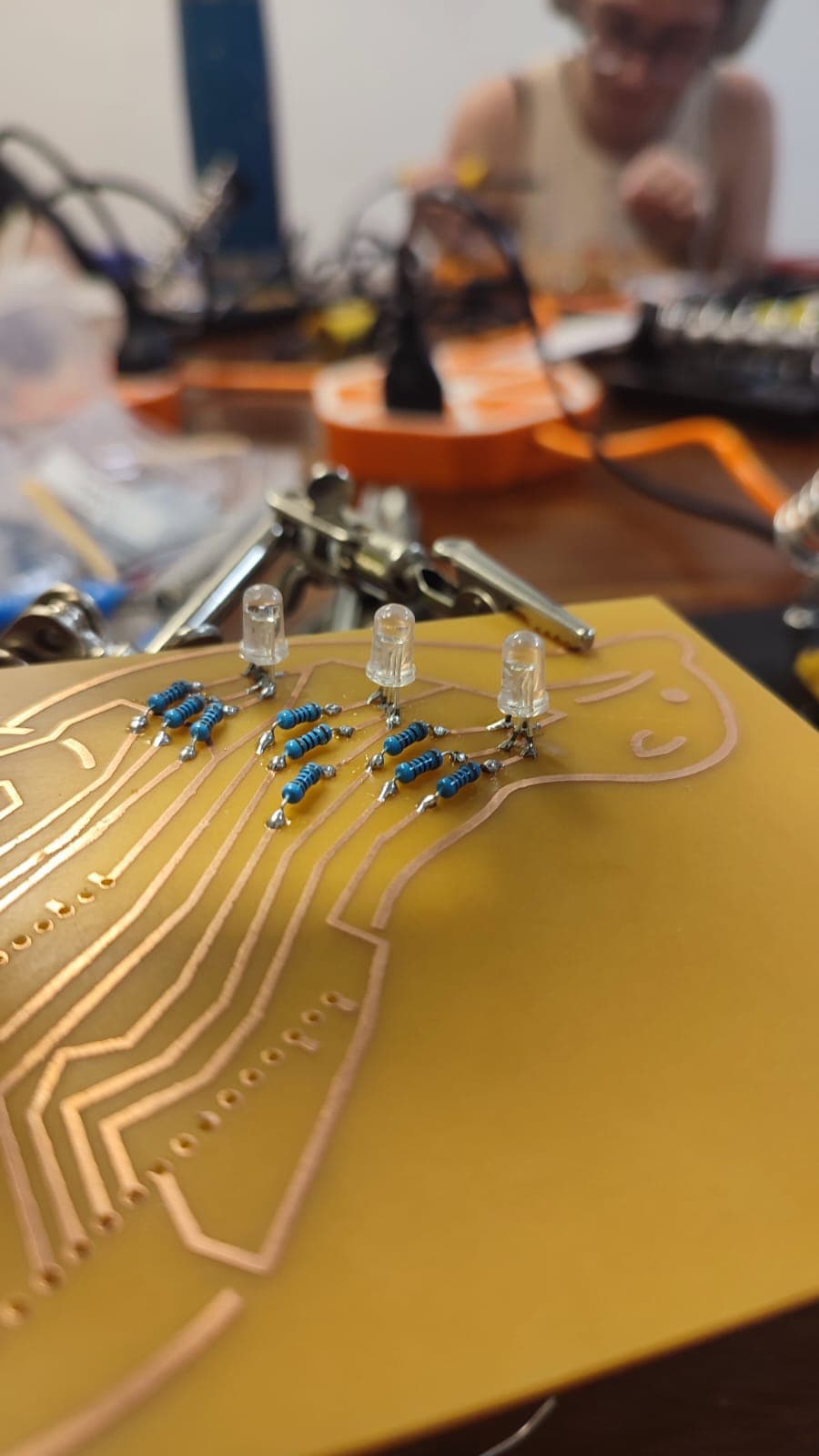

    Soldering components
    Soldering components

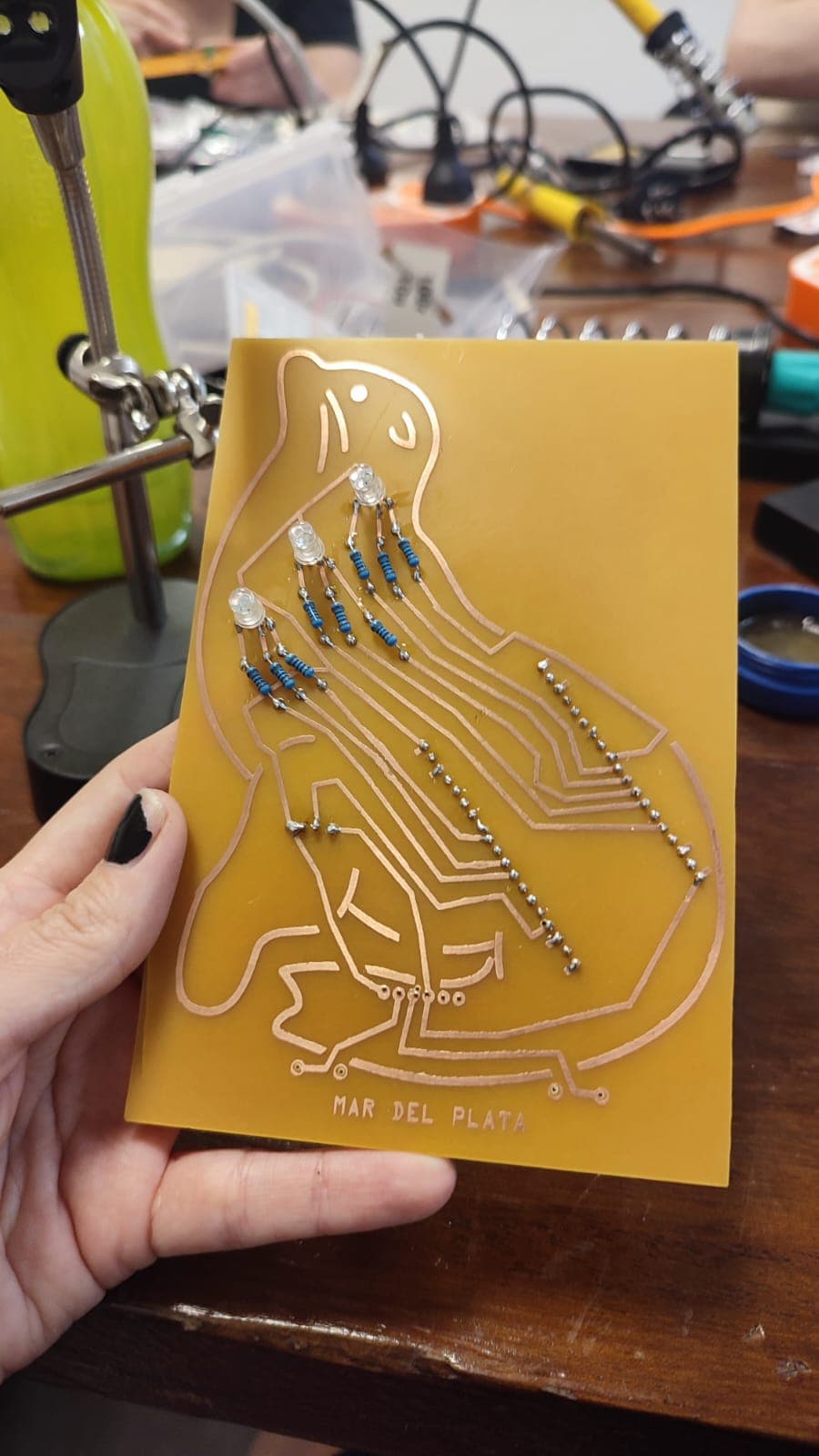

    Soldering result
    Soldering result

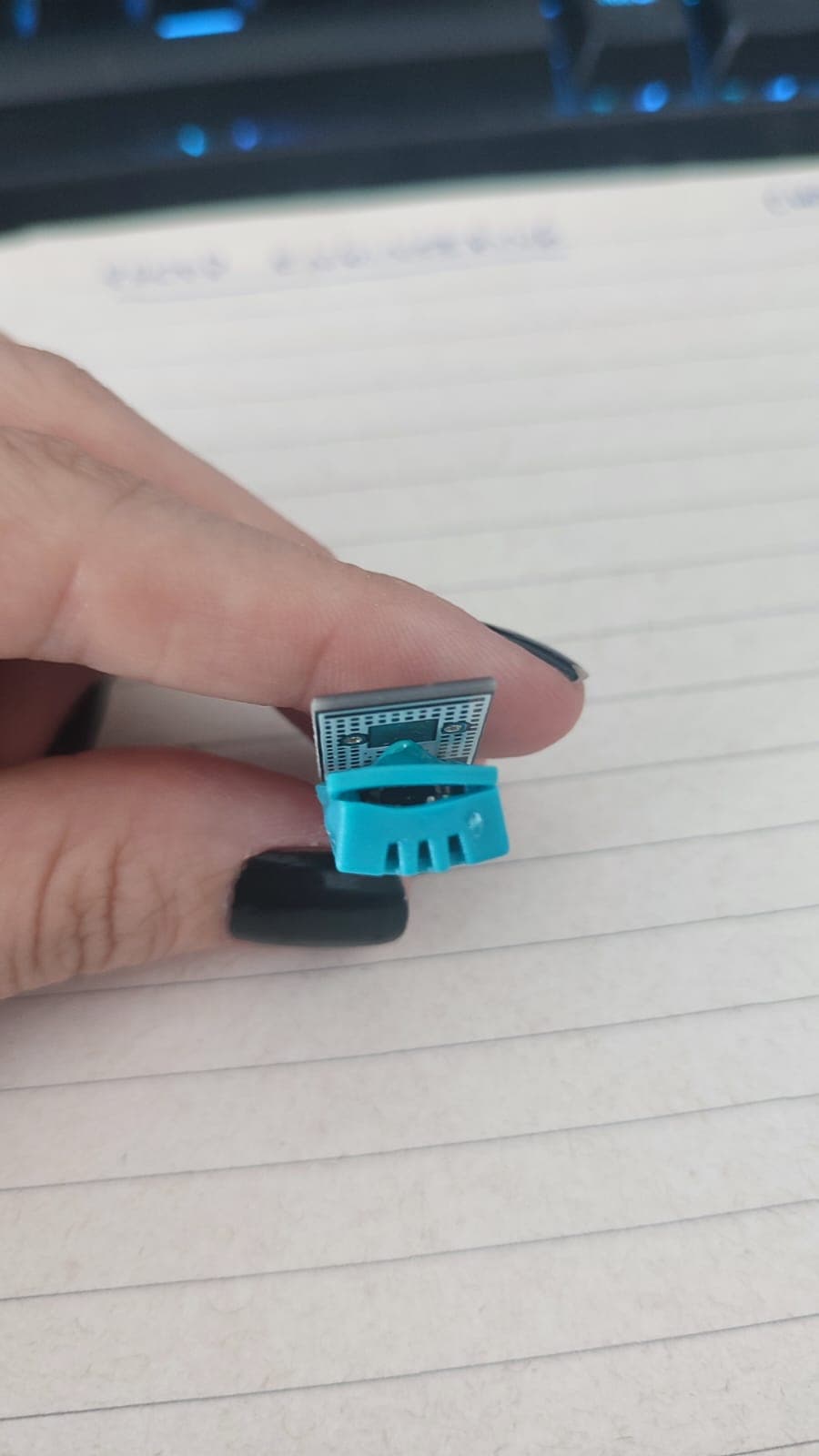

    Burned temperature and humidity sensor (v1)
    Burned temperature and humidity sensor (v1)

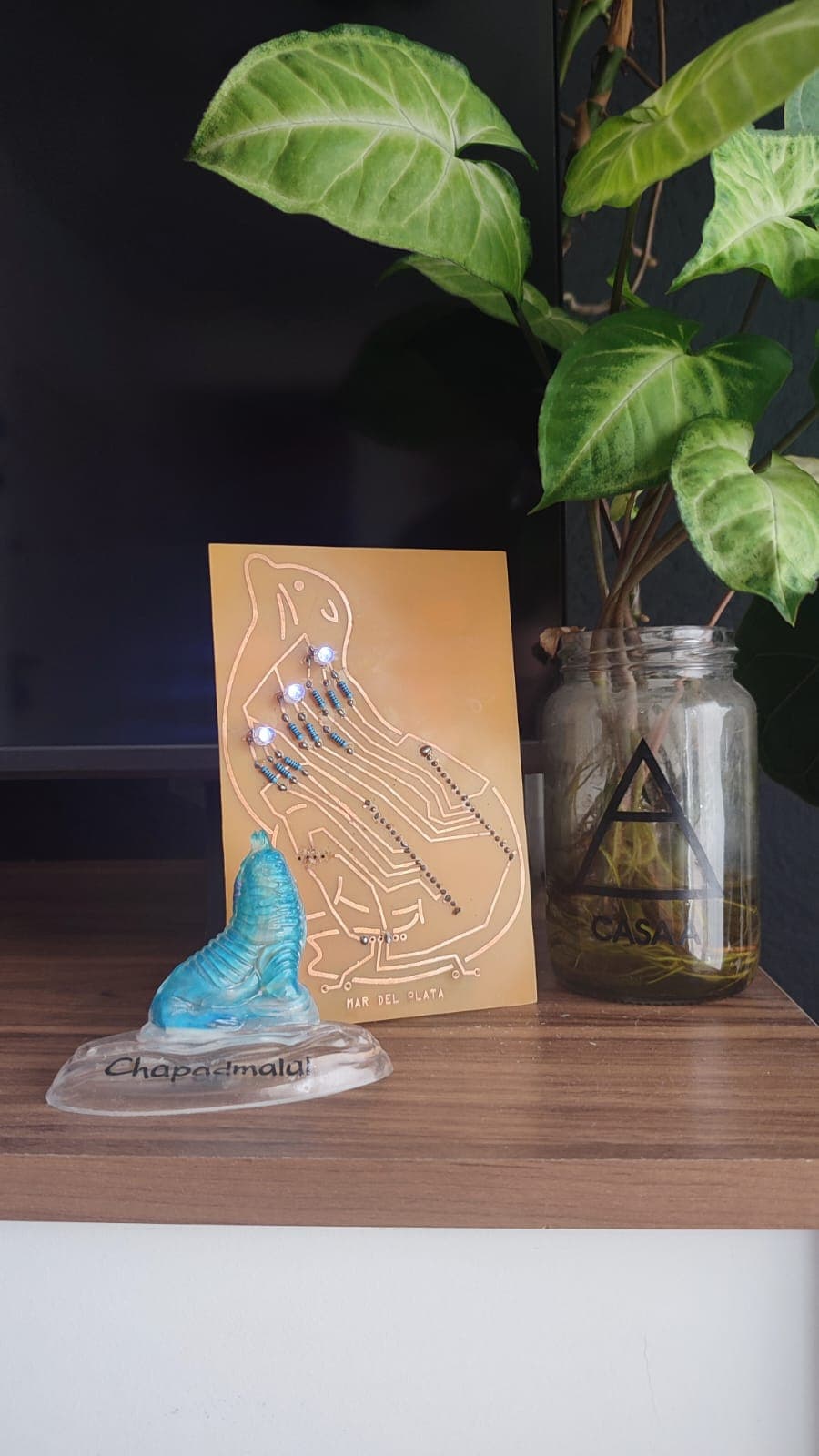

    mdq-cyborg on a good weather day (1)
    mdq-cyborg on a good weather day (1)

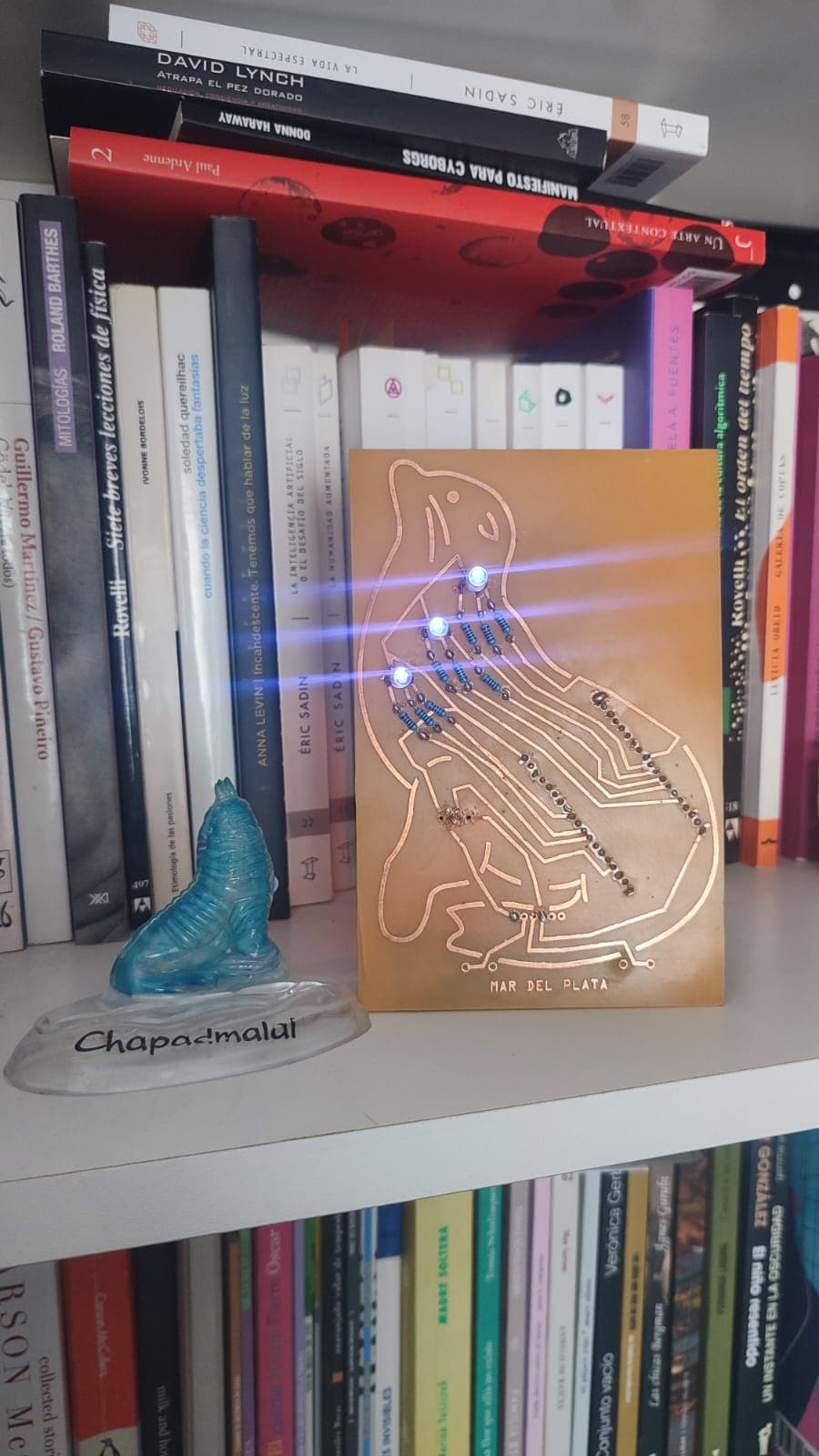

    mdq-cyborg on a good weather day (2)
    mdq-cyborg on a good weather day (2)

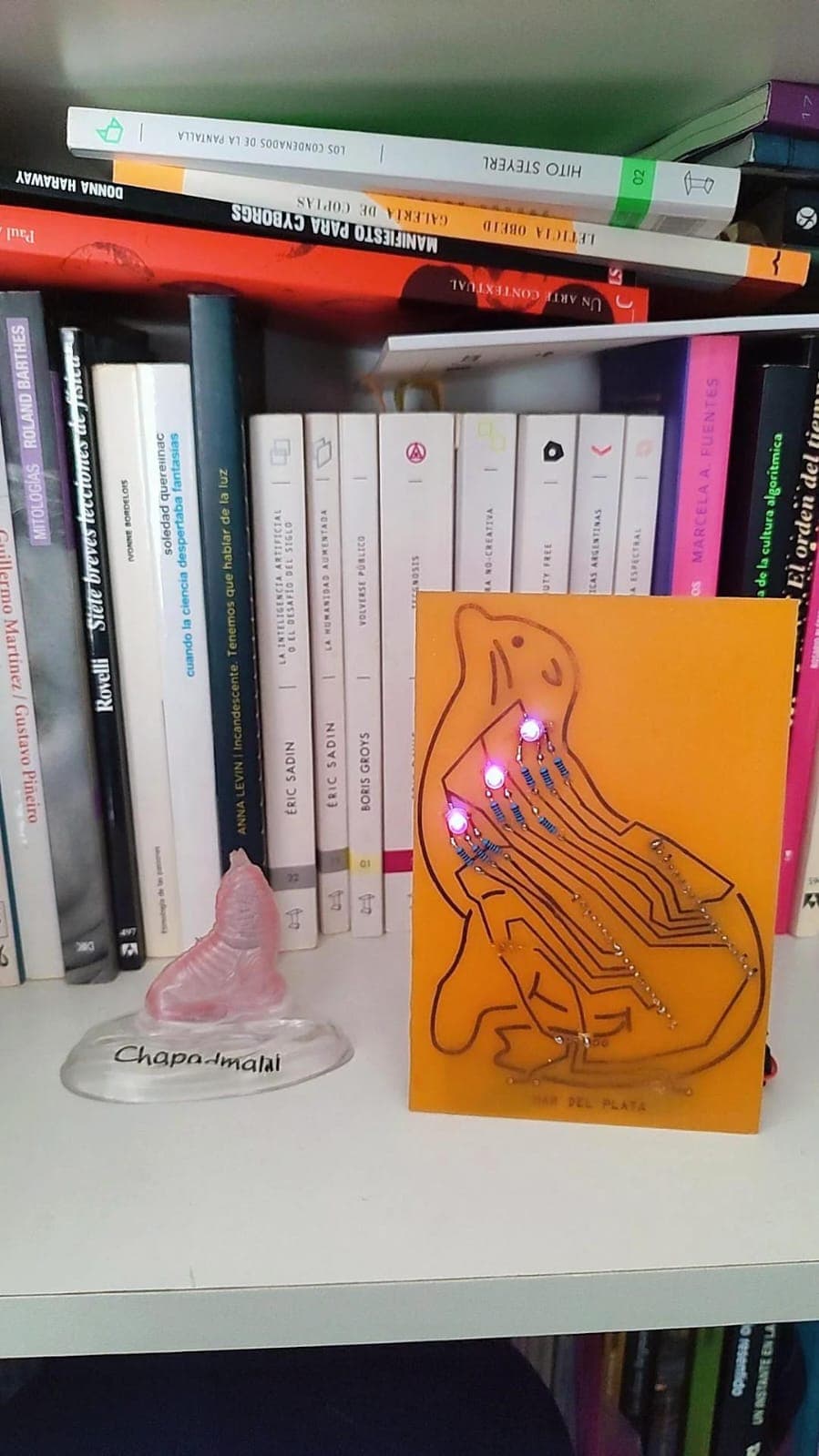

    mdq-cyborg on a humid day
    mdq-cyborg on a humid day
